WK 6000TU - AC Power Measurement station with 3 analog outputs, 2 pulse outputs and 2 relays

AC Power Measurement station, Din Rail, Universal Power Supply, Triple Insulation 3750Vac

€494.00 BT
Frais de port calculés à la caisse.

Downloads :

Technical Document

Operating manual

Configuration software

EU Declaration of Conformity

Contact us Find a distributor
Availablity : Contact us
If you cannot find the product you need, we develop customised products. Please do not hesitate to contact-us

Fiche technique

Type of Inputs :
Current or Voltage
Number of Inputs :
3
Self-powered :
No
Number of Relays :
2
Type of Outputs :
Analog
Digital
Impulse
Number of Outputs :
4
Independent isolated outputs :
Yes
Communication Bus :
Modbus RTU
Display :
Without
Case size :
45 mm
Treatment :
Digital
Programming :
USB, RS485
Height :
5 cm
Width :
13 cm
Depth :
14 cm
Weight :
250 g
Warranty Length :
60 months

Fonctionnement

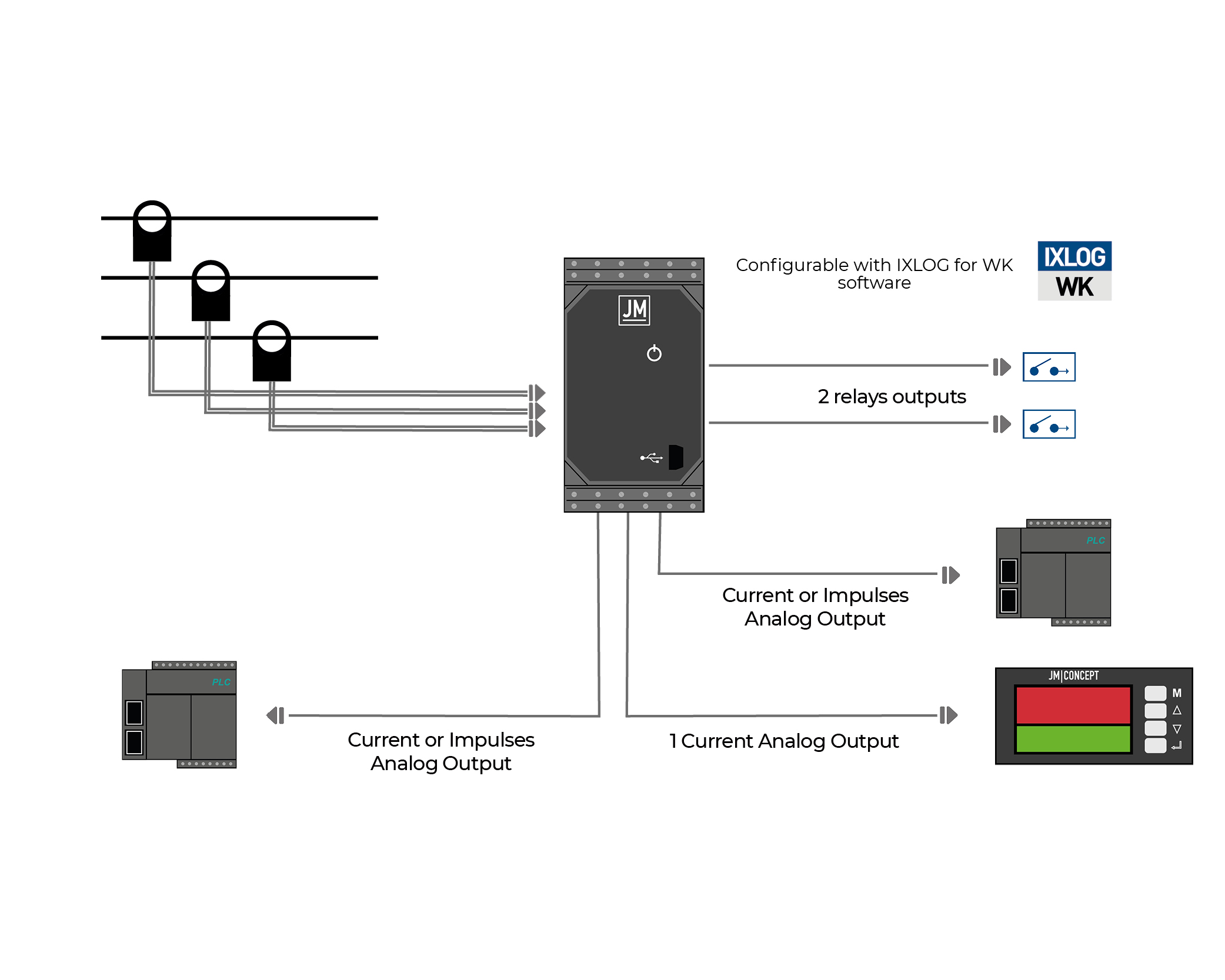

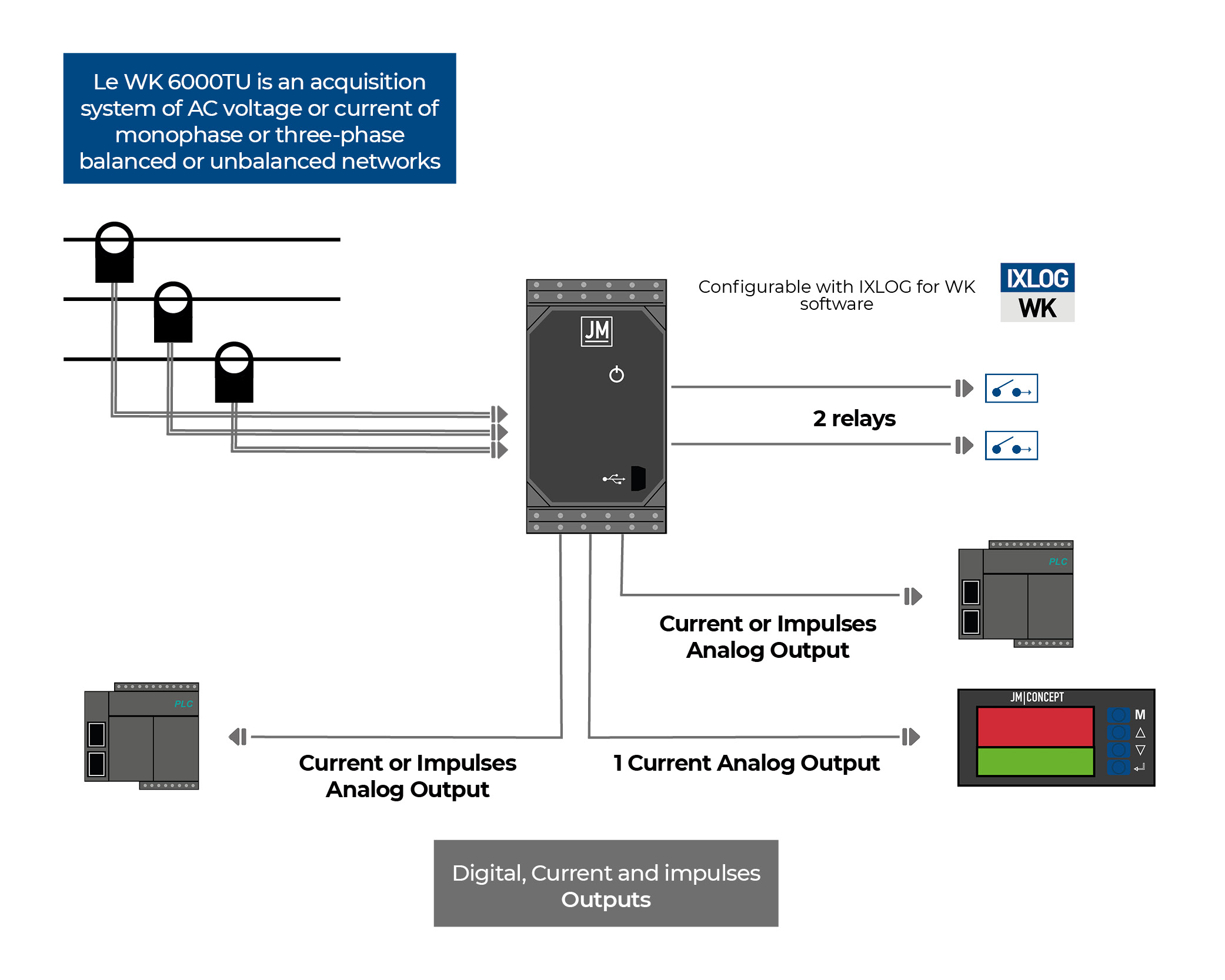

AC Power Measurement station: AC current/voltageAC/Power/Energy+3 analog outputs/RS485/USB, product comes with its own Baseline, without display, configuration by IXLOG WK software
