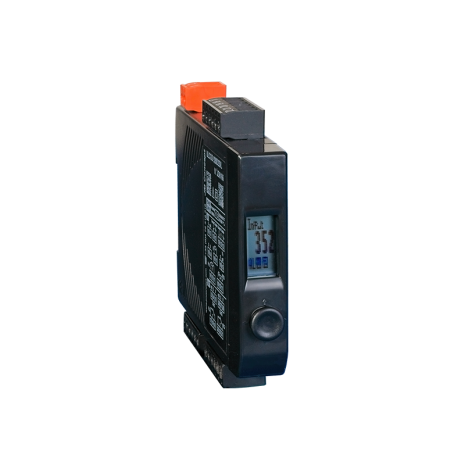

ULCOS820F2 - Digital-to-analog converter with frequency input for DIN rail mounting, featuring 2 analog outputs and 2 relays
product
ULCOS820F2 - Digital-to-analog converter with frequency input for DIN rail mounting, featuring 2 analog outputs and 2 relays
product

ULCOS 820F2 - Frequency Input Digital Transmitter on DIN RAIL with 2 analog outputs and 2 relays

Transmitter, Din-Rail Universal Power Supply, Triple Isolation 2500Vac

€222.00 BT
Frais de port calculés à la caisse.

Downloads :

Technical Document

Operating manual

Configuration software

EU Declaration of Conformity

Contact us Find a distributor
Availablity : Contact us
If you cannot find the product you need, we develop customised products. Please do not hesitate to contact-us

Fiche technique

Type of Inputs :
Fréquency
Number of Inputs :
1
Self-powered :
No
Number of Relays :
2
Type of Outputs :
Analog
Number of Outputs :
2
Independent isolated outputs :
Yes
Display :
With
Case size :
17.5 mm
Treatment :
Digital
Programming :
Indirect USB
Height :
2 cm
Width :
9.8 cm
Depth :
11.5 cm
Weight :
150 g
Warranty Length :
120 months

Fonctionnement

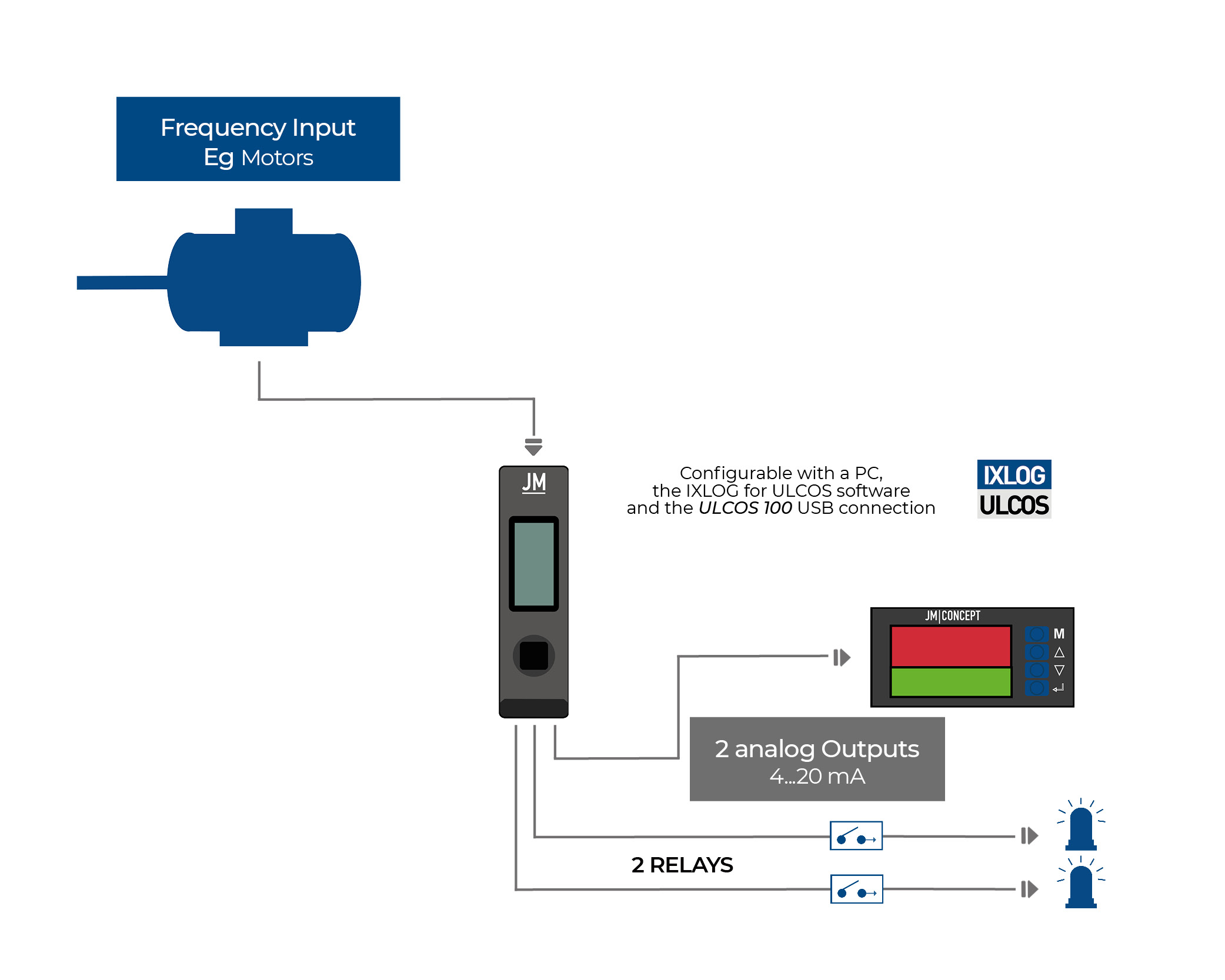

Digital Transmitter with frequency input + 2 analog outputs + 2 RELAY, DIN Rail mounting box with display
